TECHNO system ø3
Perimeter Protections
Techno security system

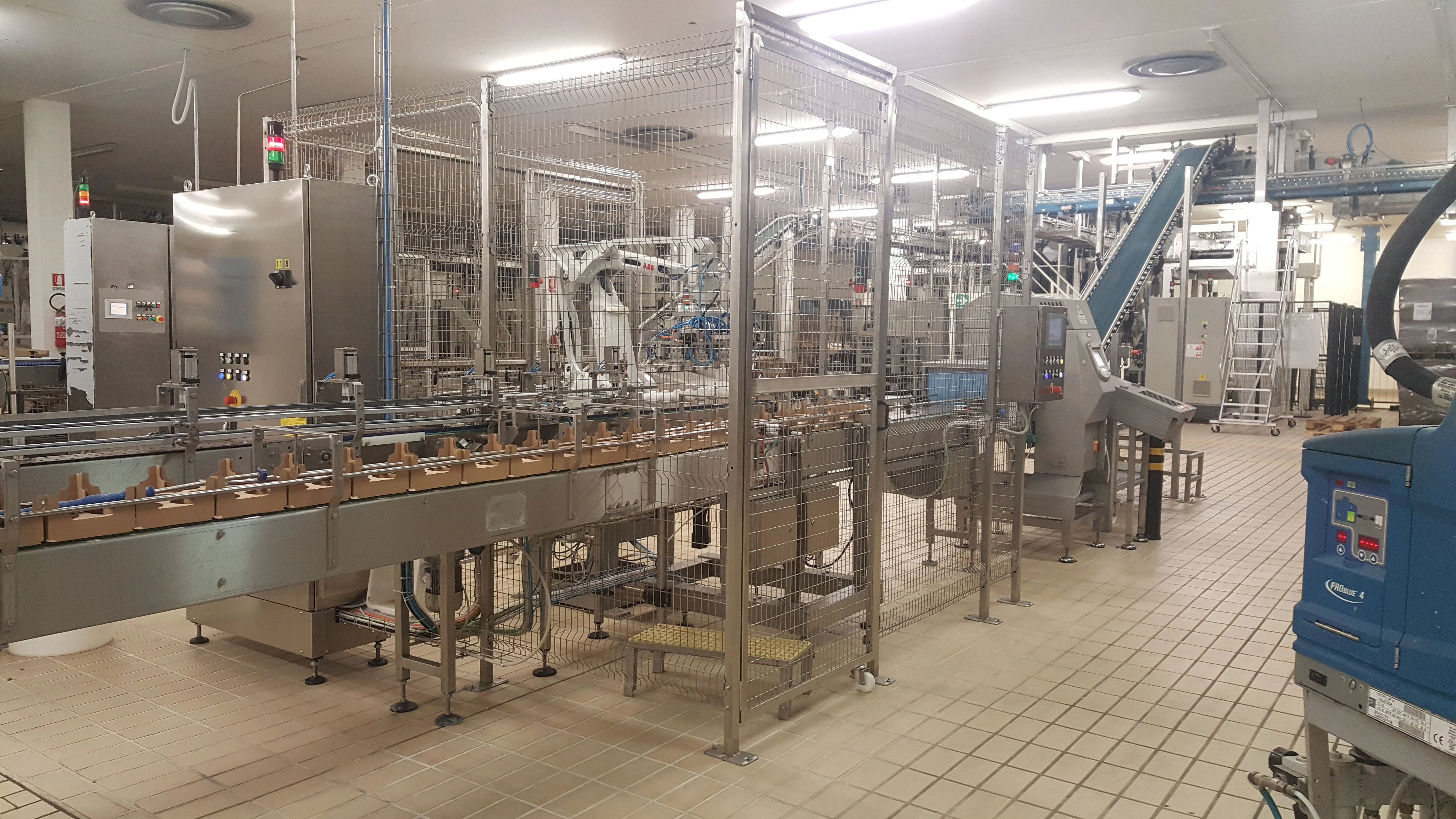

The Techno system was created to offer a solution in steel at low cost, easy to install, to all those who have to define dangerous areas.
This product was born as a freestanding panel, with a net designed to improve vision of segregated machinery.
 |
CostEconomical because of no border frames. |
 |
InterchangeabilityBoth systems Novatek and Techno can be exchanged between each-other realizing hybrid structures. The net is made of folds reinforcements which ensure an excellent impact resistance; the posts have a welded plate. |
 |

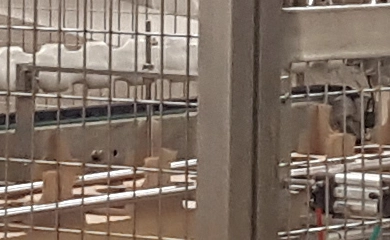

VisibilityOur innovative net and the absence of border frames permit an optimal visibility of the machinery. |
 |
Operational / FlexibilityTechno can be modified by using a few tools because of no border frames. |
  |
|
 |
|
Quick Techno Kit is an accessory that optimizes the assembly time and the installation can be made even by a single operator.
The Kit contains 3 brackets specially designed to make the product corresponding to the standard norms.
When finished the kit has to be removed.
Sizes
Panel Sizes
Mounting Sizes
Colors
Standard:
mountings and panels
Standard:
door panels scratchproof
Custom color
for mountings and panels
KIT TERMINAL SCREW
This kit includes 3 plates and relative screws for H 2000 and 4 plates and relative screws for H 2520.
KIT CORNER SCREW
This kit includes 6 plates and relative screws for H 2000 and 8 plates and relative screws for H 2520.
KIT INTERMEDIATE SCREW
This kit includes 6 plates and relative screws for H 2000 and 8 plates and relative screws for H 2520.
FASTENING SYSTEMS
In accordance with existing rules the new kit TECHNO captive screws are easy to install, inexpensive and is available on request.
UPRIGHT 40x80
UPRIGHT 40x40
LEVELING KIT
for uprights 40x40 - 40x80. This kit allows to vertically adjust the posts.
KIT FOR FIXING TECHNO SPECIAL PANELS WITH 1 CREASE/FOLD
This accessory allows to fix the panel to the pillars after having adjusted or shortened it horizontally.
KIT PANEL INCLINATION
This accessory permits to make angles from 30° to 180°.
KIT CONVEX CORNERS
This accessory is used to make convex angles of 90°.
